Product Details
+

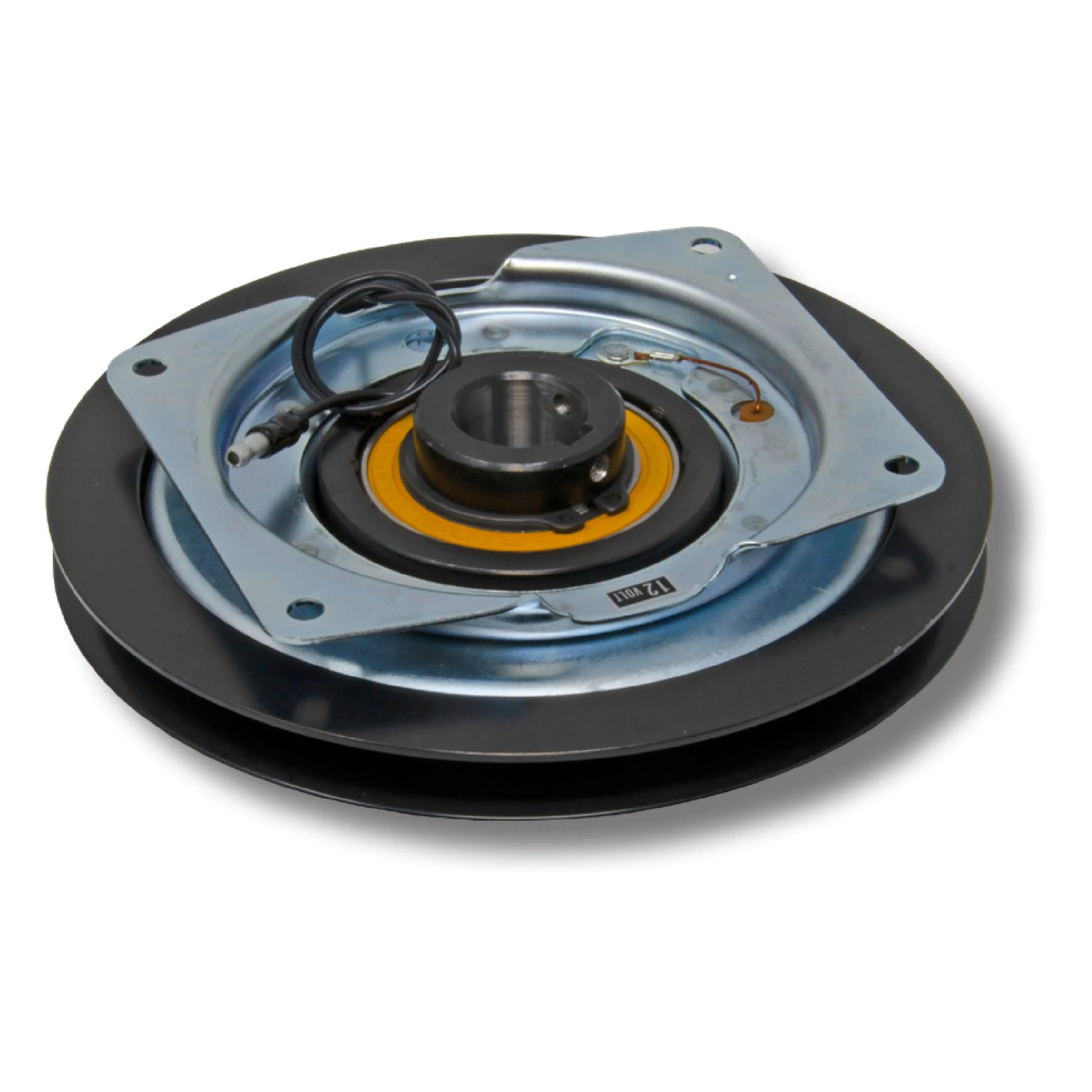

Tpical mobile clutch - water pump applications.
Key Features:
- Applications: Ideal for carpet cleaning, texture spray machines, and high-pressure pump applications.
- Clutch Placement: Mounted on the input shaft of the water pump with an integral pulley.
- Activation: Engages water pump when powered to initiate water flow.
- Compatibility: Directly mounts to a General Pump using an adapter plate.
Specifications:
- Pulley Size & Type: 7" A Groove, 24mm Shaft
- Width: 2.25 inches
- Torque After Burnishing: 75 - 95 lbs
-
Power Requirements:
- 12V: 47 Watts
- 24V: 45.6 Watts
- Weight: 8 lbs
Part Numbers and Descriptions:
- 100687: Clutch with Mounting Plate for 47, 66, 59(ES) Series, 12V, Dual Groove
- 100688: Clutch with Mounting Plate for 44, 50, 63, and 58(EP) Series, 12V, Dual Groove
- 100719: Clutch with Mounting Plate for 47, 66, 59(ES) Series, 24V, Dual Groove
- 100720: Clutch with Mounting Plate for 44, 50, 63, and 58(EP) Series, 24V, Dual Groove
- 100717: Clutch with Mounting Plate for 47, 66, 59(ES) Series, 12V, Single Groove
- 100718: Clutch with Mounting Plate for 44, 50, 63, and 58(EP) Series, 12V, Single Groove
Advantages of Electromagnetic Clutches:
- Reduced horsepower consumption
- Extended pump life
- Cost-effective
- Simple installation
- Convenient for operators
- Aids in cold weather starting
Design Advantages:
- Rotor: Solid forged with no internal parts separation, ensuring even wall thickness and optimal torque.
- Voltage Options: Available in common 12V and 24V.
- Grease: High temperature, long-life grease for improved durability.
- E-coating: Maximum corrosion protection on all parts where possible.
- Epoxy Coating: High-temperature epoxy coating seals coils, protecting against vibration and contaminants.
- Pulley: Heavy-duty, machined pulley for enhanced durability in harsh environments.
